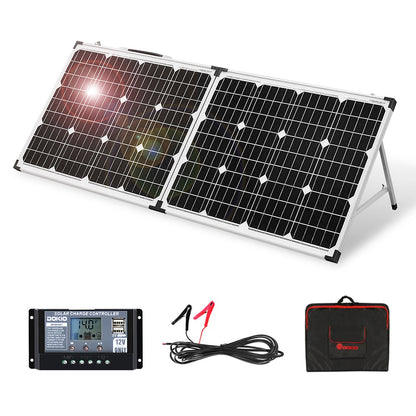

Anaka 100W 12V Solar panel China Solar battery Waterproof Solar Kits Panel Solar For Home/Caravan Solar Cell For Travel Camping
Anaka 100W 12V Solar panel China Solar battery Waterproof Solar Kits Panel Solar For Home/Caravan Solar Cell For Travel Camping
Couldn't load pickup availability
SPECIFICATIONS
is_customized: Yes
Weight: 6.9KG
Type: Solar Panel
Size: 63.5*45*5CM
Short-Circuit Current (Isc): 5.81A
Origin: Mainland China
Open-Circuit Voltage (Voc): 22.50V
Number of Panels: 1
Number of Cells: 36
Nominal Operating Cell Temp.(NOCT): -45 to 80 degree Celsius
Model Number: FSP-100M(50*2M)
Maximum System Voltage: DC1000V
Maximum Series Fuse: 9A
Maximum Power(Pmax): 100W
Maximum Power Voltage(Vmp): 18.00V
Maximum Power Current (Imp): 5.56A
Max. Power: 100W
Material: Monocrystalline Silicon

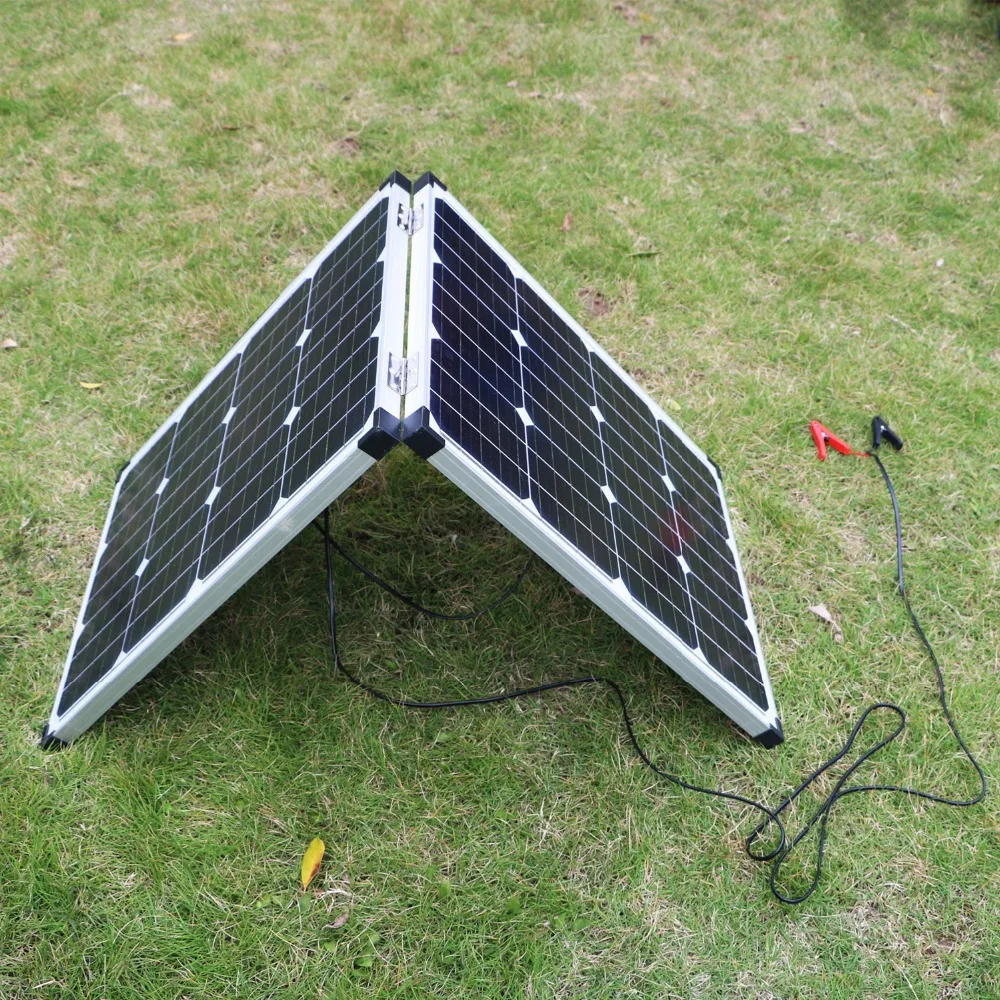

Foldable Solar Panel: Yes
Flexible Solar Panel: No

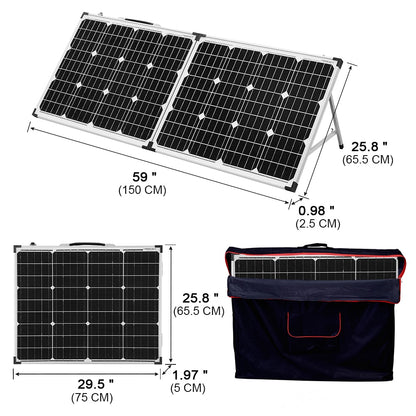

Dimensions: 635*450*50mm
Certification: CE
Brand Name: Anaka

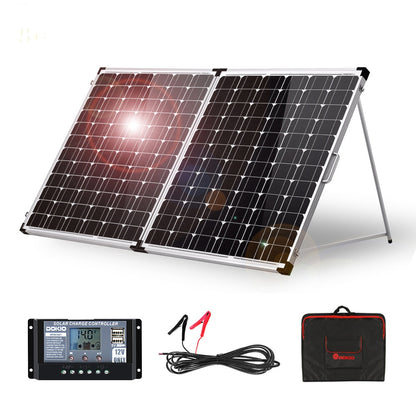

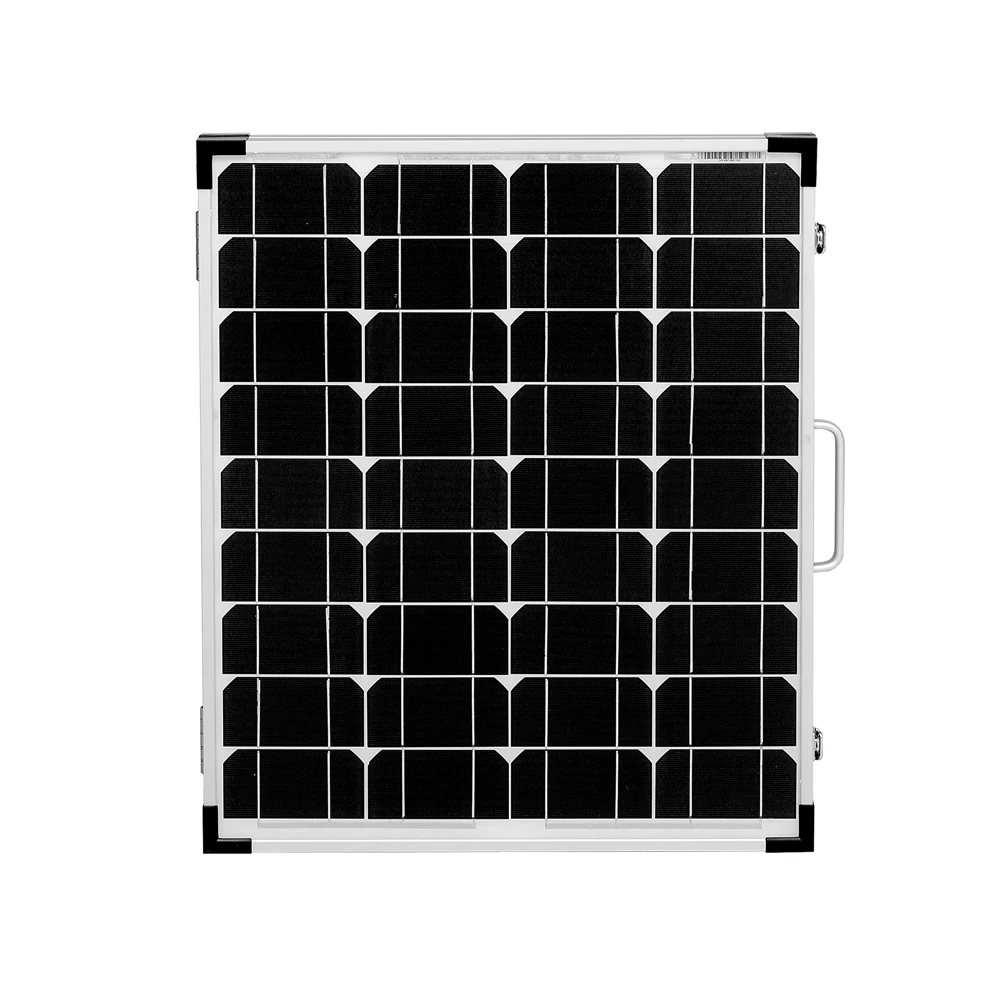

Anaka 100W 12V Solar panel China Solar battery Waterproof Solar Kits Panel
Solar For Home/Caravan Solar Cell For Travel Camping
Model:FSP-100M
Maximum Power(Pmax): 100W
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):5.56A
Open-Circuit Voltage (Voc): 22.50V
Short-Circuit Current (Isc):5.81A
Maximum System Voltage: DC1000V
Maximum Series Fuse:9A
Nominal Operating Cell Temp. (NOCT):-45 to 80℃
Weight: 6.9KG
Dimensions:630*450*50mm

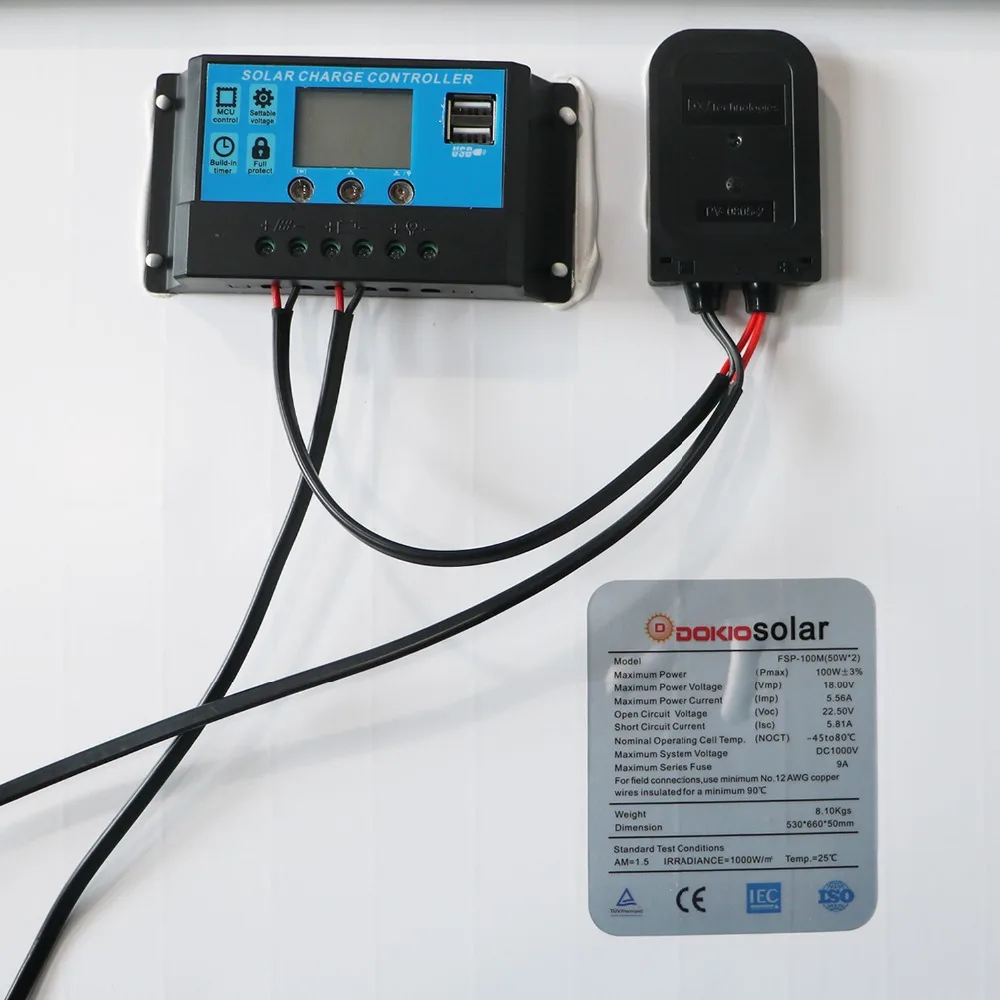

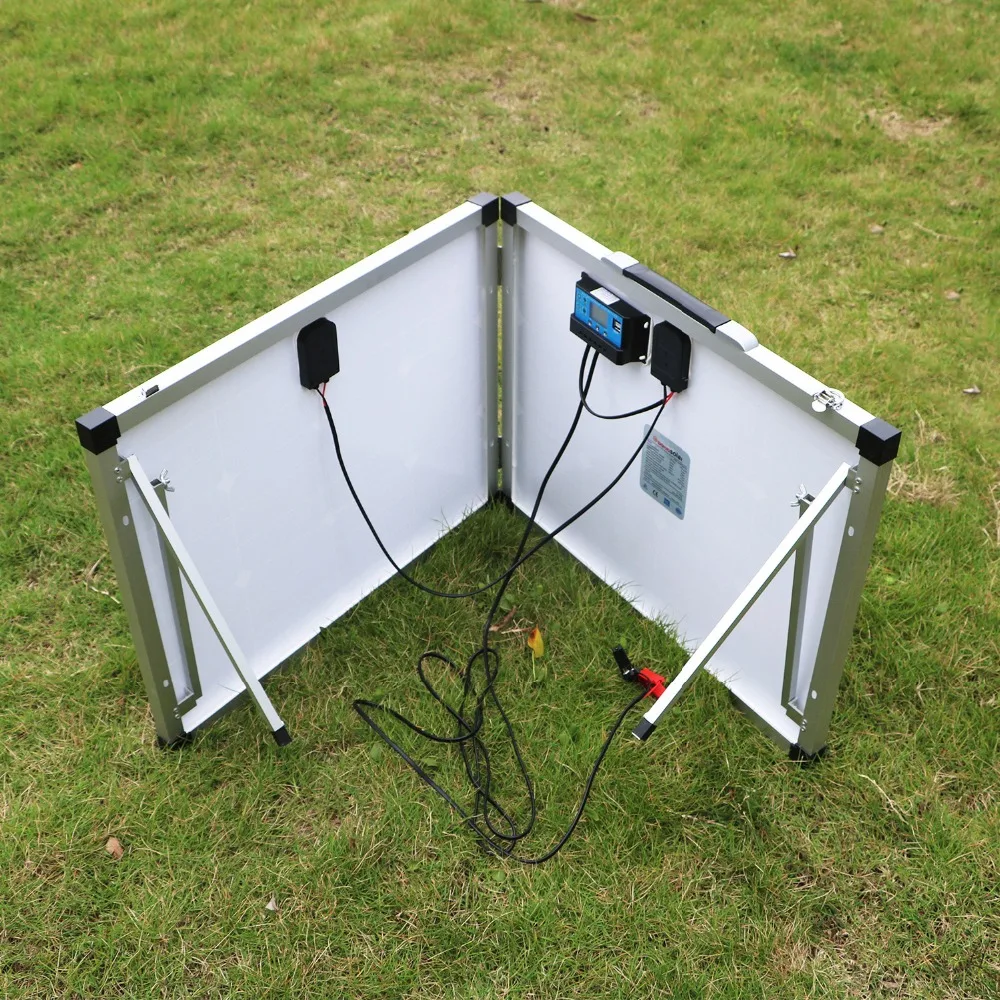

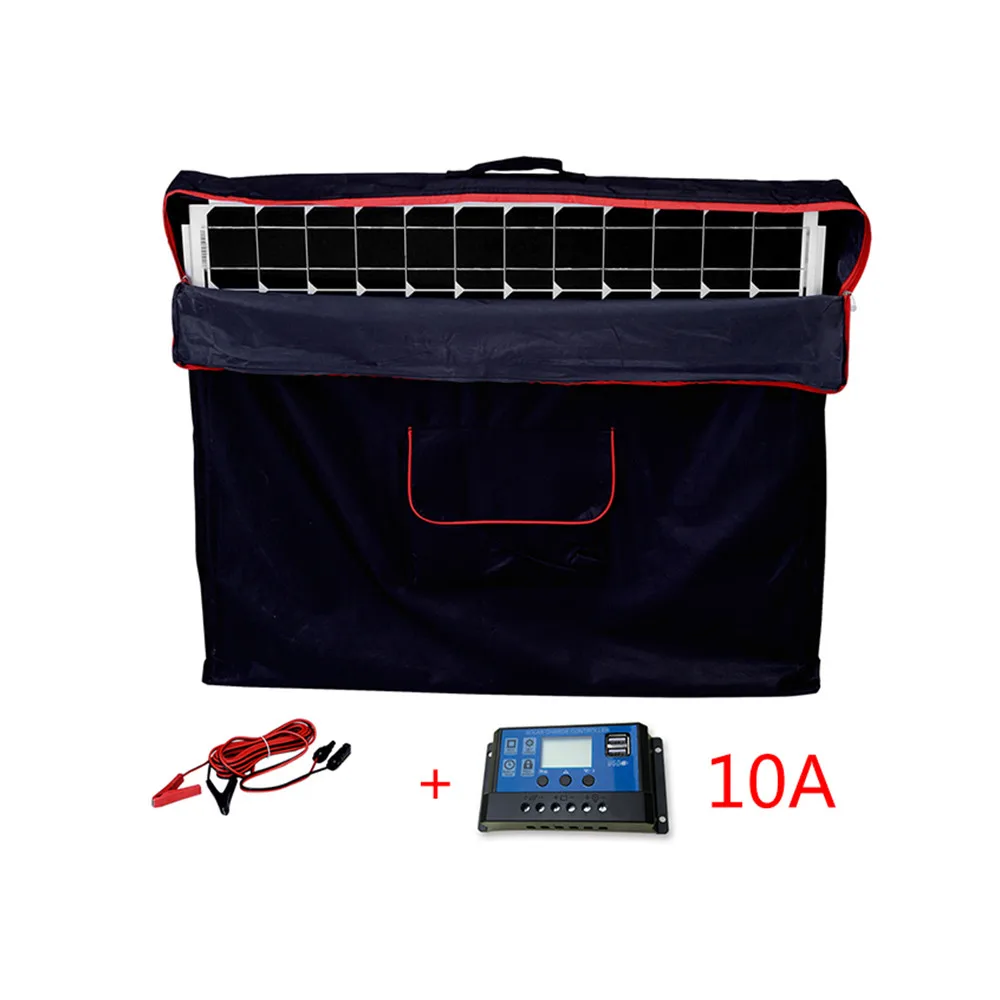

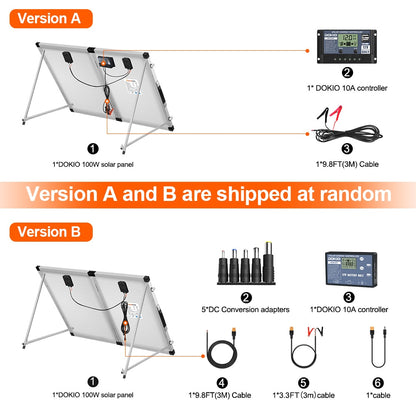

Packing List: 3M wire and 10A controller（Fixed behind the solar panels）
1.The dimensions of the solar panels are manually measured and there may be slight errors. But it does not affect the quality of the solar panels.
2.The folding solar panel set is only suitable for use alone and cannot be connected in parallel and in series with other solar panels.

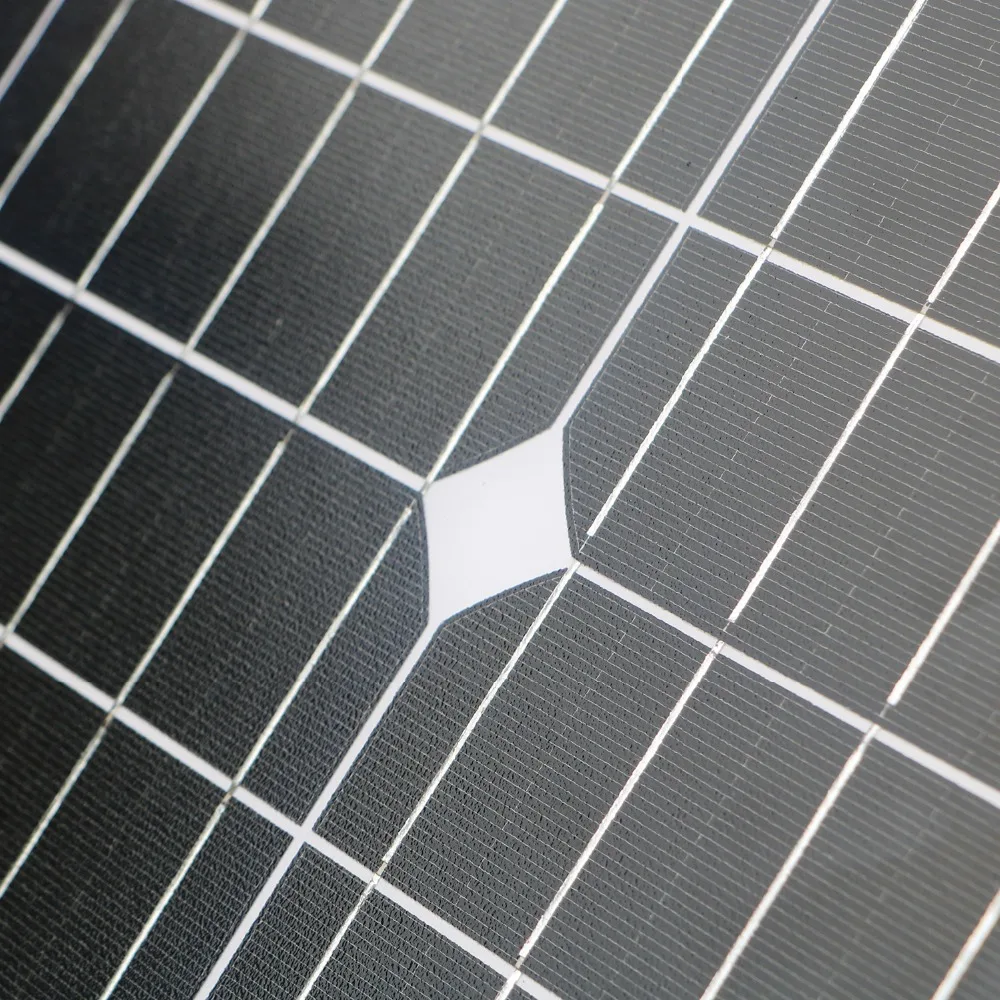

3.HIGH CONVERSION EFFICIENCY: With high efficiency monocrystalline solar cell, you will get greater power efficiency even though the panel is smaller than a traditional model.Maximizes system output by reducing mismatch loss; 100% EL testing on all DOKIO solar modules.
