BSIDE New Voltage Detector Tester Non-contact Smart Electric pen NCV Live wire Continuity test Ohm Hz DC AC Digital Multimeter
BSIDE New Voltage Detector Tester Non-contact Smart Electric pen NCV Live wire Continuity test Ohm Hz DC AC Digital Multimeter
Couldn't load pickup availability
SPECIFICATIONS

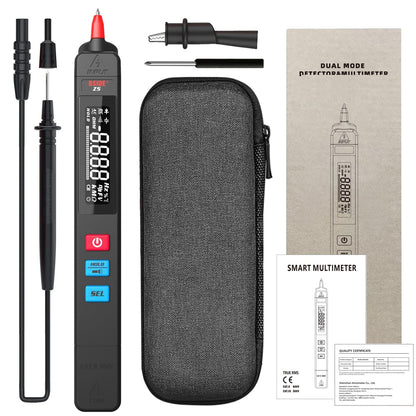

Z5 Display: 6000 counts EBTN display.
Z1 Display: 2000 counts LCD color display.
Self-test function: Yes.
Security Level: Comply with international safety standards. CE certification.
Resistance test: Yes.
Power Supply: Battery
Origin: Mainland China
Operating Temperature: 0 - 40 ℃
Model Number: Z1
Live wire Detection: Yes.
Live Wire Breakpoint Locate: Yes.
Frequency Test: Yes.
Flashlight lighting: Yes.
Display Type: Analog and Digital
Diode Test: Yes. (Z5)
Dimensions: 18.5*2.2*2.2 cm
Dangerous Voltage Alarm: Yes.
DIY Supplies: ELECTRICAL
DC/AC voltage Test: Yes.
Continuity Test: Yes.
Certification: RoHS
Certification: FCC
Certification: CE
Capacitance test: Yes. (Z5)
Brand Name: BSIDE
Alarm mode: Sound and light (Red/Green)
Product introduction:

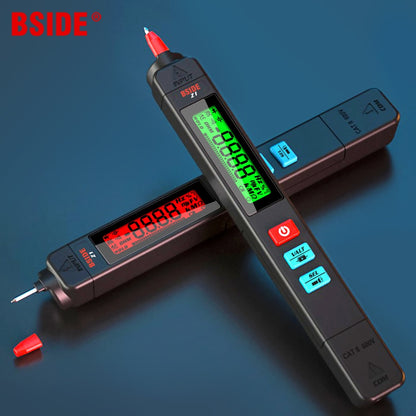

This products belong to the latest generation of BSIDE brand smart voltage detector tester！
The 1.9-inch Red/Green two-color display design leaves an excellent user experience for buyers;The easy-to use/Single Button to Switch design is well recognized by buyers.
Exquisite appearance / reliable performance / complete functions, can meet the needs of different groups of people, and is very suitable as gift.
Main Features:
Non-contact and pen shaped desigh,convenient to operate and carry.

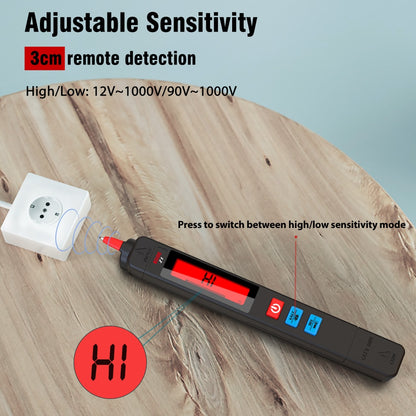

Dual sensitivity mode（High：12~1000V / Low：48~1000V）. The sensitivity of the product can be adjusted freely according to the actual scene used.
This product has a Self-test function at boot time. It can effectively detect whether the product can work normally and avoid wrong judgment.

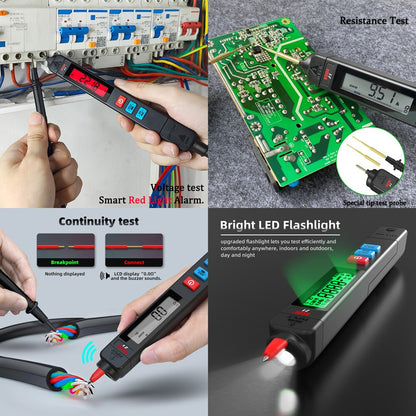

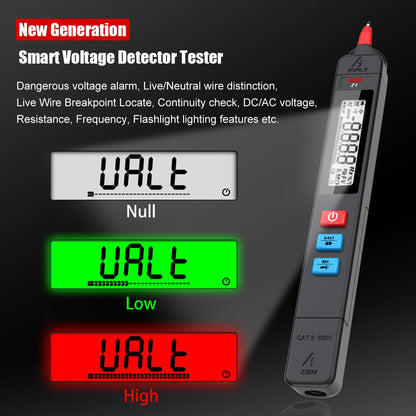

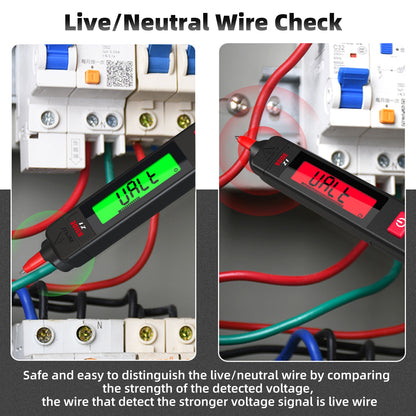

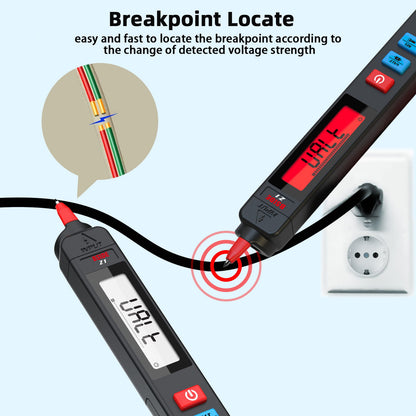

Has Induction dangerous voltage alarm, Live/Neutral wire distinction, Live Wire Breakpoint Locate, Continuity check, DC/AC voltage, resistance, frequency, flashlight lighting features etc.
Alarm mode:Sound and light (Red/Green).
LED spotlight, Battery low voltage reminder, Auto power off features.
Safety level: CAT II 1000V. Compliance with international safety standards.
Product introduction:
Max Display: 2000 counts.
Display Type: LCD screen.
Screen: 1.9 inch.
DC Voltage: 0~500V ±(0.8%+3); Resolution: 0.01V.
AC Voltage: 0~500V ±(1.2%+5); Resolution: 0.01V.
Resistance: 0Ω~2MΩ ±(1.2%+3); Resolution: 1Ω
Frequency: 40Hz~1000Hz ±(2.0%+10); Resolution: 0.1Hz
V-Alert(non-contact voltage detection): alarm beep sounds, LCD screen display stripe.
Live Check: alarm beep sounds, LCD screen display stripe.
Continuity: If the resistance is less than 50Ω, the beeper sounds.
Power: 2*1.5V AAA battery
Size: 185*22*22mm.
Weight: 52g.

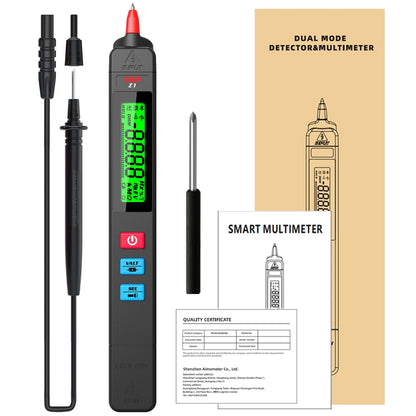

Package Includes:
1 * Z1 Multifunctional voltage detector.
1 * Test Lead. 1 * User Manual.
1 * Packing Box. 1 * Quality Certificate.

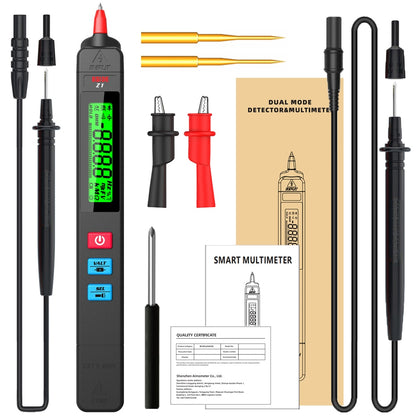

Z1 Tool Kits :
Kit contains: Z1 original product + 2*Special tip test probe + Extra long 2m test lead + C3104 Alligator Clip.
