DOKIO 100W 18V Solar Panel Waterproof Glass Solar Panel 200W 300W 400W Home/RV/Camping Rechargeable Monocrystalline Solar Panel

DOKIO 100W 18V Solar Panel Waterproof Glass Solar Panel 200W 300W 400W Home/RV/Camping Rechargeable Monocrystalline Solar Panel

$99.99 USD
$125.89 USD $99.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

SPECIFICATIONS

is_customized: Yes

Voc:: 22.50V

Vmp:: 18.00V

Type: Solar Panel

Size: 97*56.5*2.5cm

Pmax:: 100W±3%

Origin: Mainland China

Number of Panels: 1

Nominal Operating Cell Temp.(NOCT):: -45 to 80℃

Model Number: DSP-100M

Max. Power: 100W

Material:: Monocrystalline silicon

Material: Monocrystalline Silicon

Isc:: 5.81A

Imp:: 5.56A

Foldable Solar Panel: No

Flexible Solar Panel: No

Dimension:: 970*565*25mm

Certification: CE

Brand Name: DOKIO


Ship from China:
By default, we use international fast logistics such as UPS, DHL, Fedex etc.Delivery time is within 10 days.
Ship from Poland:
Logistics: DHL and DPD in Germany or Poland.
Time: Delivery time in most countries is 2-8 days, and there is no tariff issue in EU countries.
Ship from Russian:
Logistics: Russian Post and CDEK.
Time: Free shipping in Russia, delivery time is within 15 days. without tariff issues. Support delivery in Belarus.
Ship from Brazil:
Logistics: With Brazilian logistics, customers need to provide CPF, otherwise they cannot ship.
Time: Logistics provides door-to-door service, and the delivery time is faster than Brazil Post. About 10-20 days. Excluding some remote areas. We will provide the invoice as proof of shipment. without tariff issues.
Please try to choose the corresponding overseas warehouse order. If the overseas warehouse is out of stock, we will contact you before shipping.


Dear friend,

For product upgrades, we have replaced raw materials, and the size of the product will change.

If you have received a different product, please do not worry. This is our newest model.

There is no problem with the quality.


At present, 150W rigid solar panels are sold in the German warehouse, you
can contact the store customer service to get the link.


To
Russian customers: The order shipped from the Russian warehouse, the
product is a newly upgraded version, and the material is upgraded.

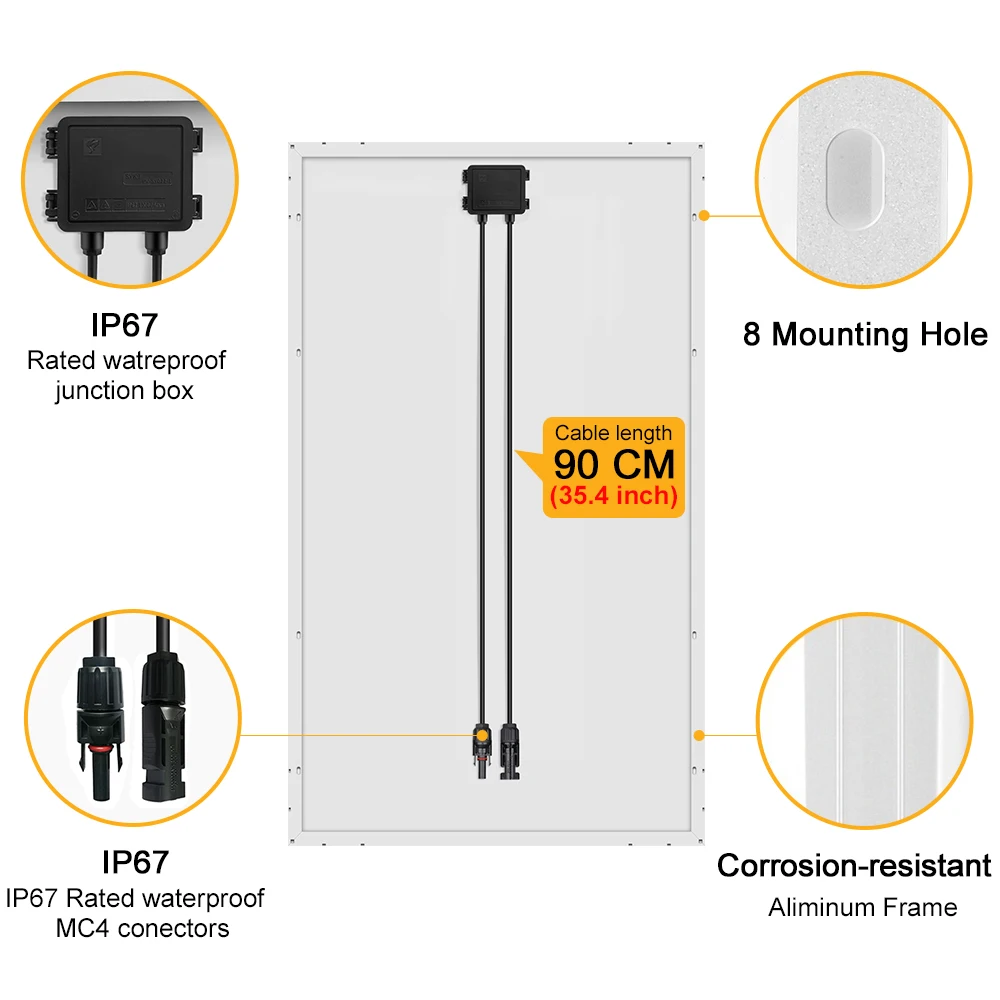

Dimensions will change and the cables behind the solar panels will be
extended to 90cm

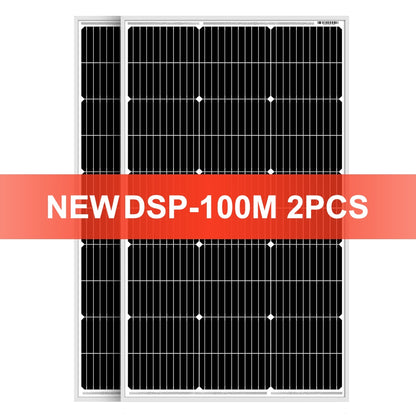

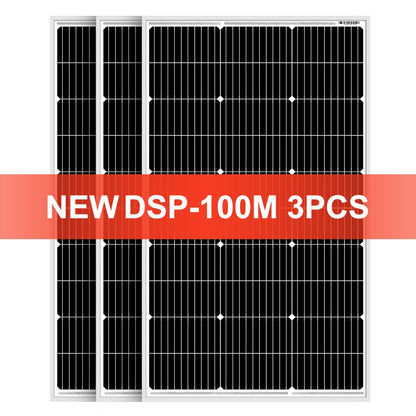

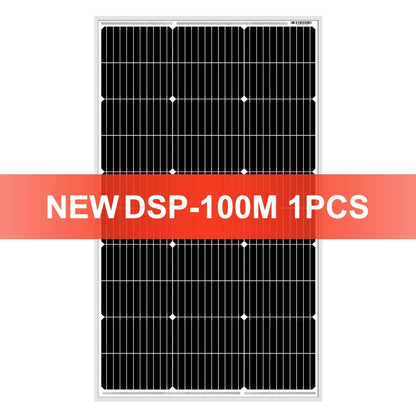

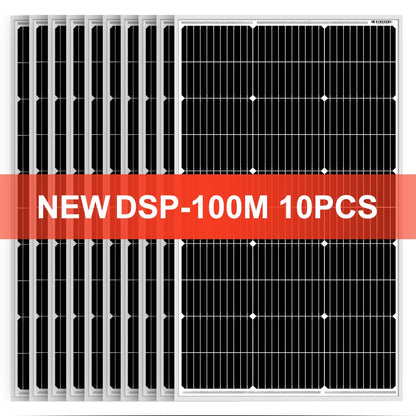

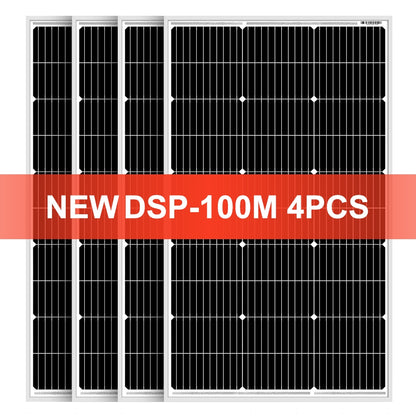

Upgrade DSP-100M



Advantages of Dokio Tempered solar panels:

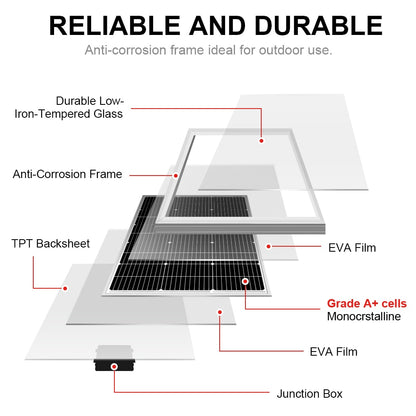

Multi-layer sheet package, sturdy and durable, good heat dissipation. No hot spots will appear.

The aluminum frame is corrosion resistant and is suitable for both indoor and outdoor use.

With
a service life of more than 25 years, it is 3-4 times that of ordinary
flexible solar panels. It is the best choice for motorhomes and
families. It has a very high cost performance and is the best choice for
home energy investment.

Product description:

The surface is tempered glass, waterproof, snowproof, resistant to small hail.

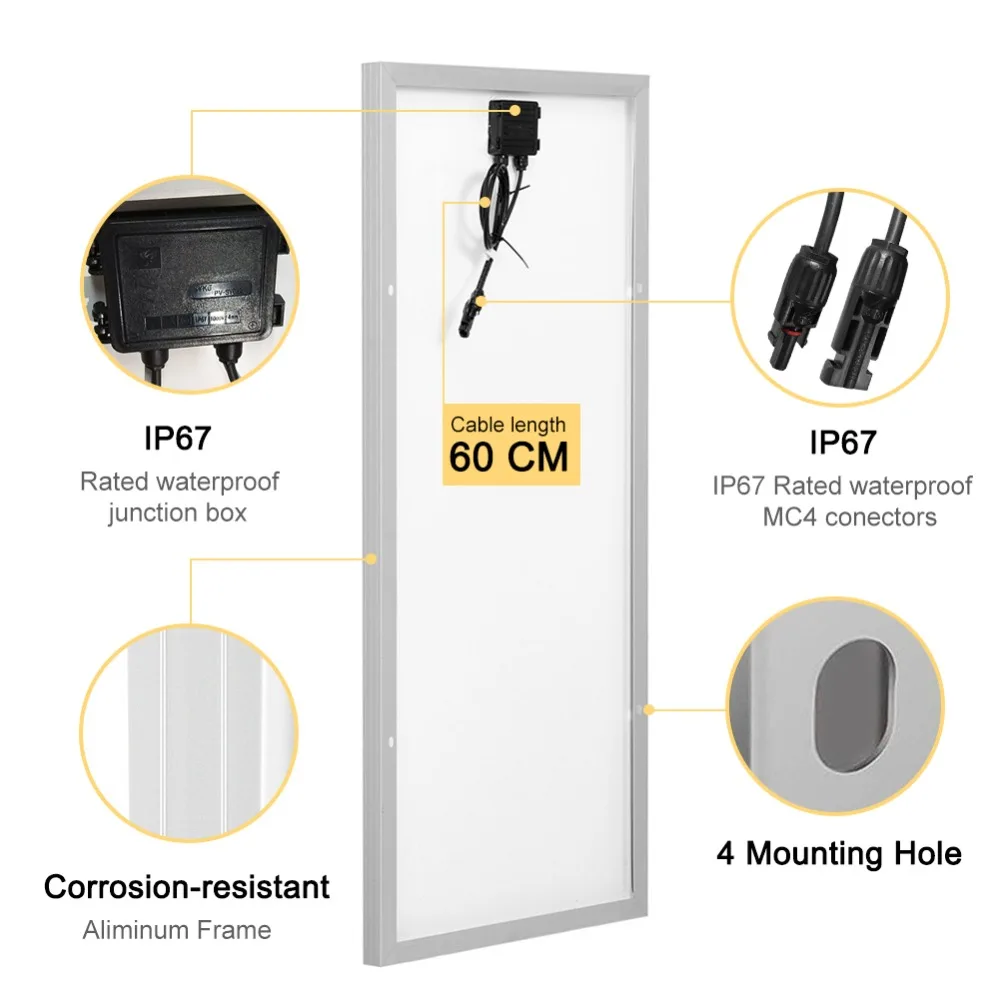

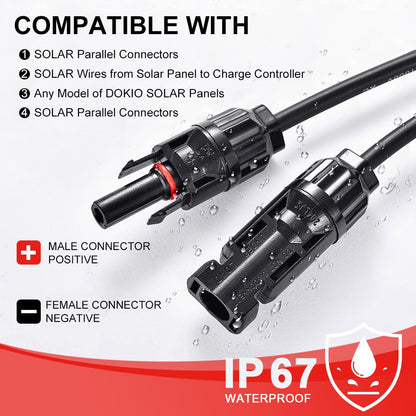

Diodes are pre-installed in junction box and a pair of 24-inches cables with MC4 connectors comes with the panel automatically

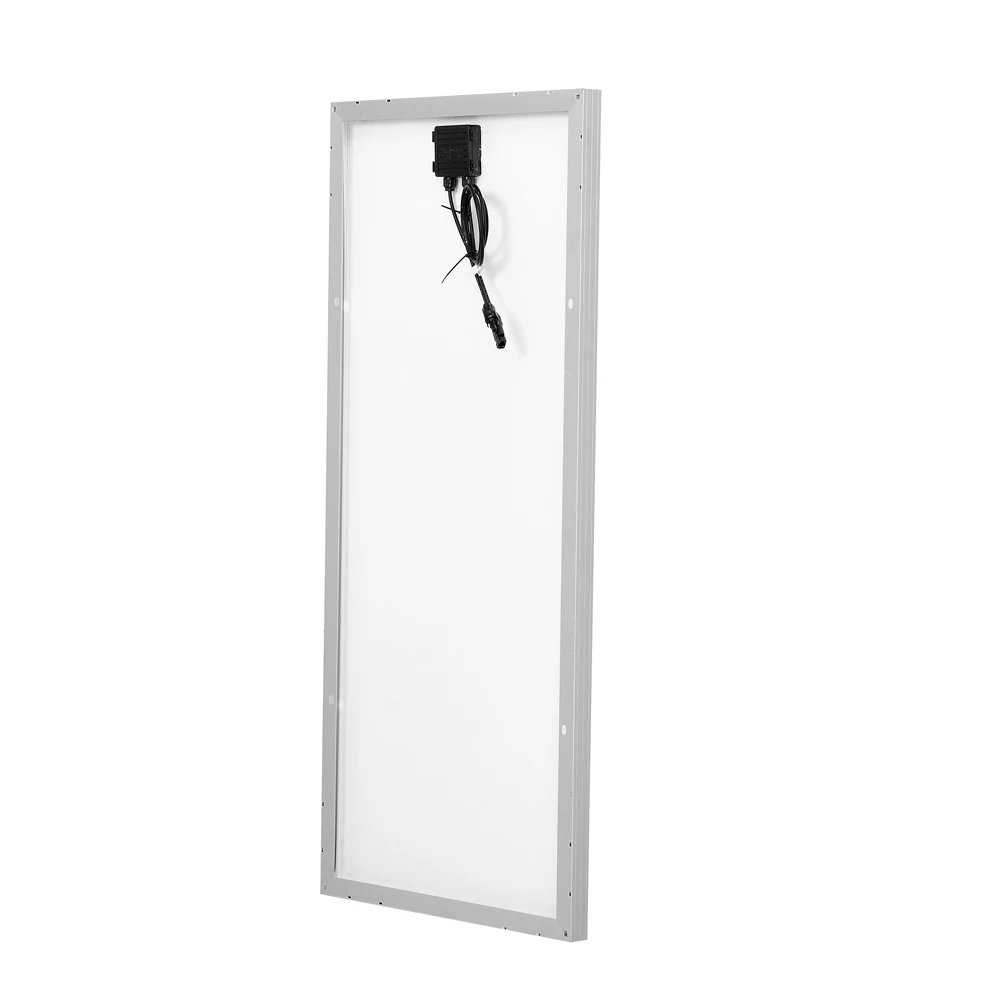

The back has 4 drill hole that can be quickly installed.


Model:DSP-100M

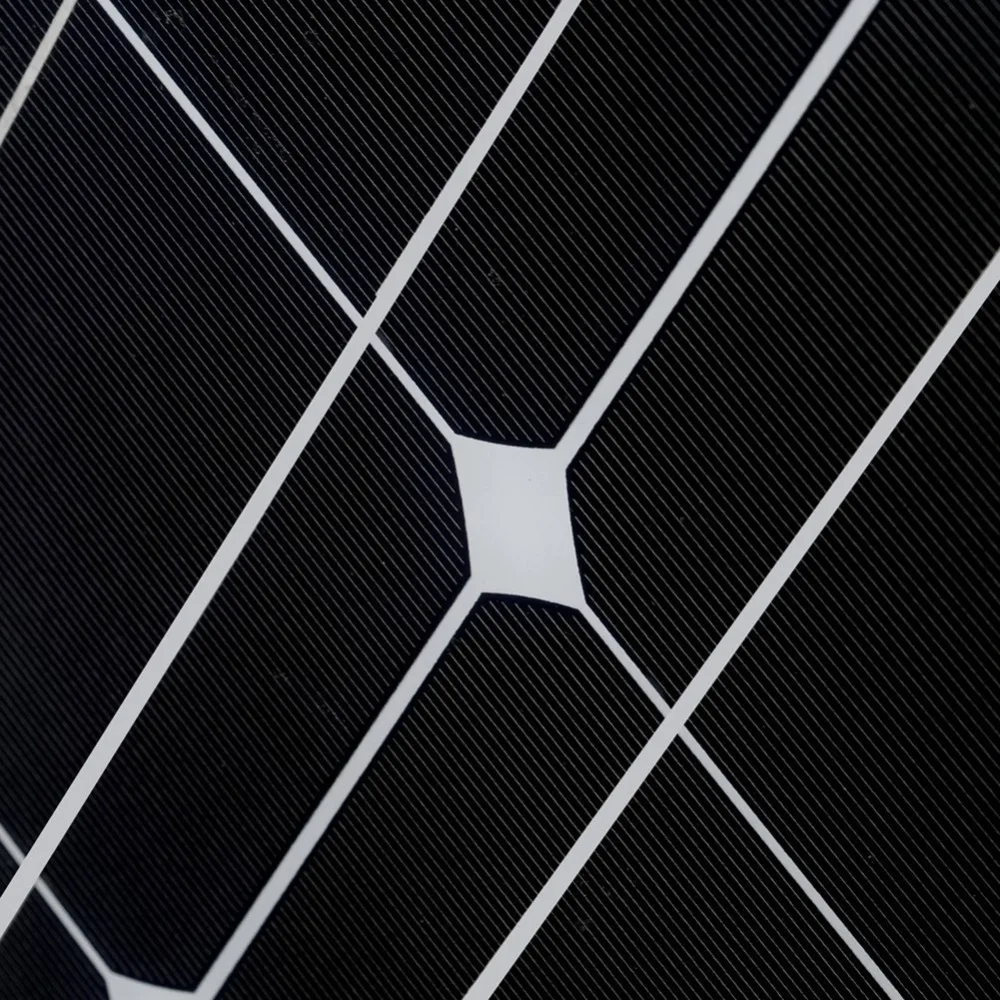

Material:Monocrystalline silicon
Maximum Power(Pmax):100W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):5.56A
Open-Circuit Voltage (Voc): 22.50V
Short-Circuit Current (Isc):5.81A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:15A

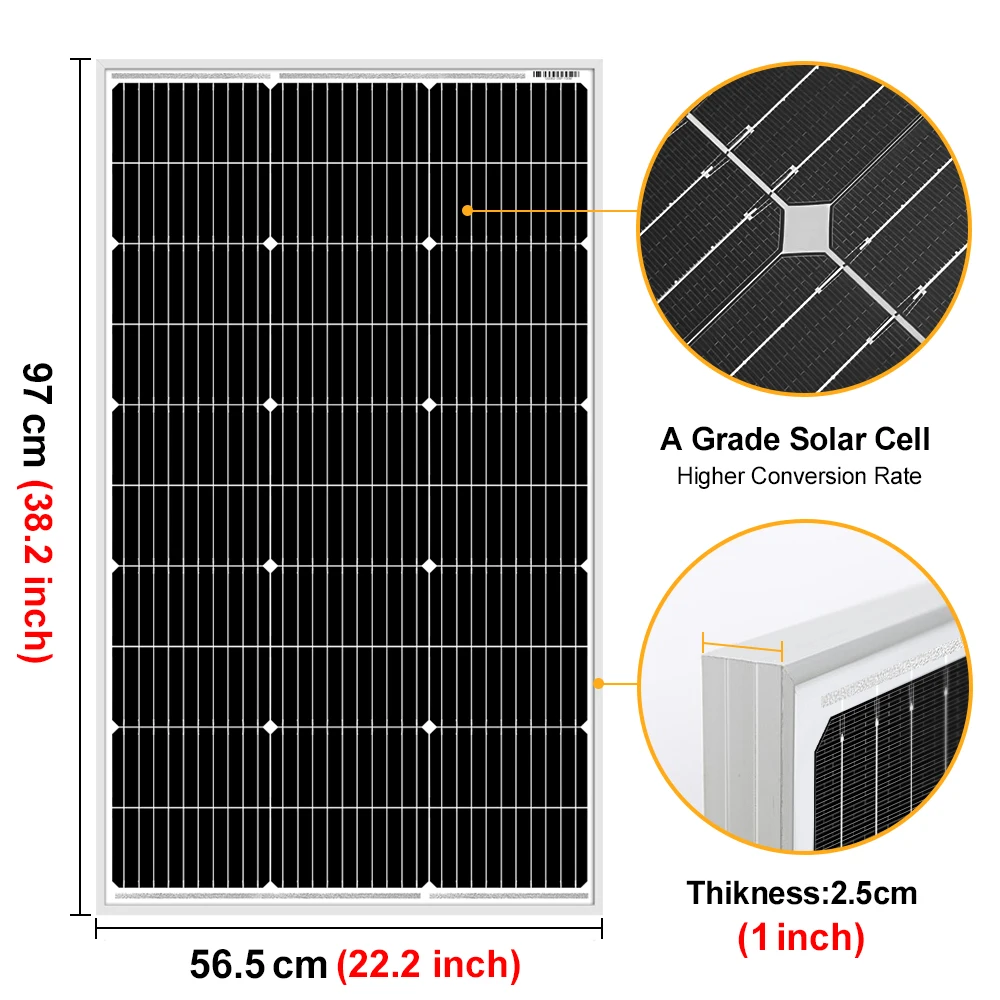

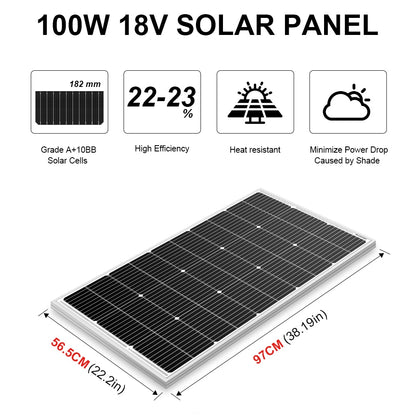

Dimension:97*56.5*2.5cm
Package Weight:7kg
Package Dimension:100*580*55mm
(The above data is based on the laboratory standard test environment)

For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）
