Dokio 18V 10pc 100W Flexible Solar panel Monocrystalline Solar Panel For Car/Home Waterproof Charge 12V 1000W Solar Panel
Dokio 18V 10pc 100W Flexible Solar panel Monocrystalline Solar Panel For Car/Home Waterproof Charge 12V 1000W Solar Panel
Couldn't load pickup availability
SPECIFICATIONS
is_customized: Yes
Type: Solar Panel
Size: 974*565mm/1180x540MM
Origin: Mainland China
Number of Panels: 10
Number of Cells: 30
Model Number: DFSP-100M
Max. Power: 100W
Material: Monocrystalline Silicon
Foldable Solar Panel: No
Flexible Solar Panel: Yes
Certification: CE
Brand Name: DOKIO
18V Short-Circuit Current (Isc): 5.81A
18V Open-Circuit Voltage (Voc): 22.5V
18V Maximum Power Voltage(Vmp): 18.00V
18V Maximum Power Current (Imp): 5.56A

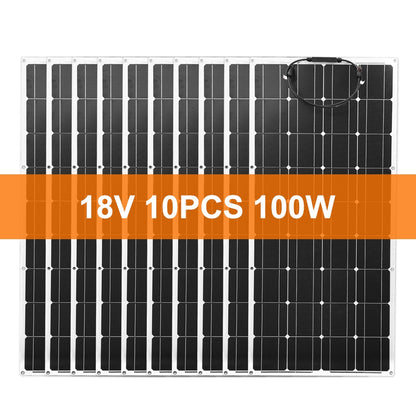

Model:18VDFSP-100M
Maximum Power(Pmax): 100W
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):5.56A
Open-Circuit Voltage (Voc): 22.50V
Short-Circuit Current (Isc):5.81A
Maximum System Voltage: DC1000V
Maximum Series Fuse:15A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Weight: 1.1KG

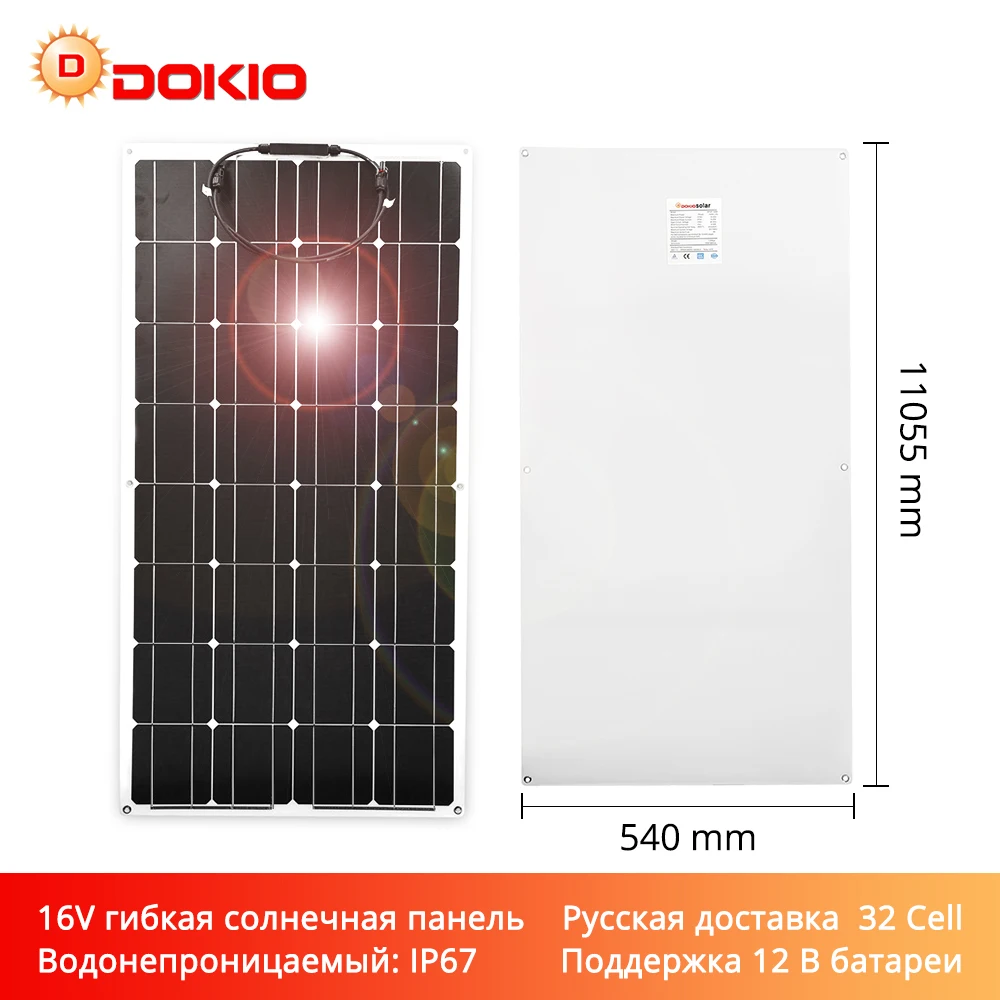

Dimensions:1180*540mm

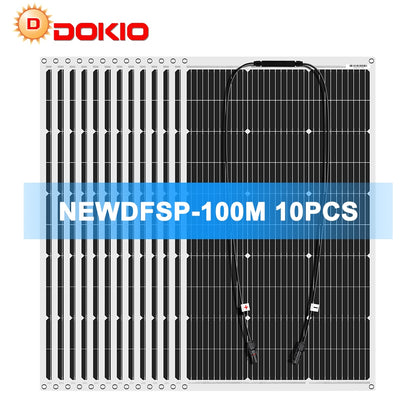

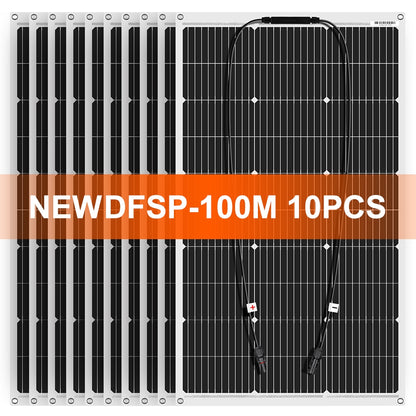

Model:NDFSP-100M
Maximum Power(Pmax): 100W
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):5.56A
Open-Circuit Voltage (Voc): 22.50V
Short-Circuit Current (Isc):5.81A
Maximum System Voltage: DC1000V
Maximum Series Fuse:15A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Weight: 1.02KG

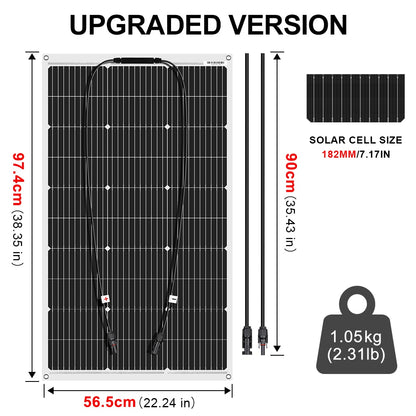

Dimensions:97.4*56.5cm/38.35*22.24in
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）
Due to the particularity of the material. Flexible solar panels are not recommended to be placed on the roof or outdoors for a long time.
Model:18VDFSP-100M

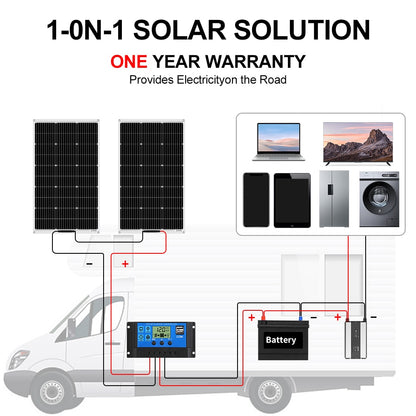

Wide range of applications
Model:NDFSP-100M
Model:16VDFSP-100M

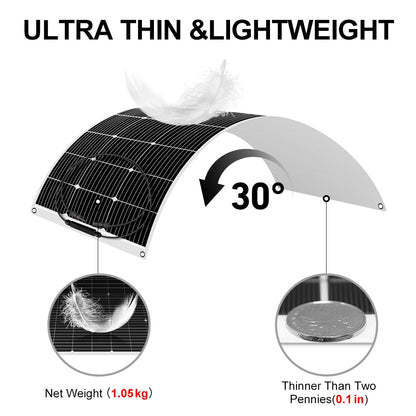

Easy to use:Semi-flexible panels can be mounted on irregular surfaces such as RV roofs, boats, tents, vaulted roofs, etc. Up to 30 degrees.
Our Advantages

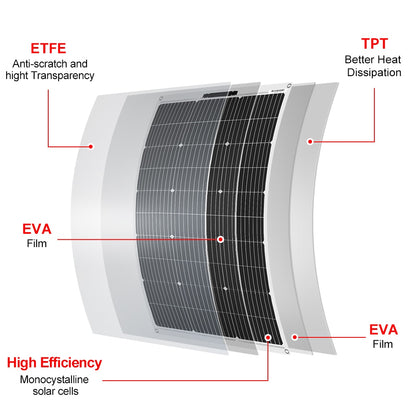

The surface is made of ETFE advanced materials. It is more durable than the PET materials used by other sellers on the Aliexpress.
The junction box on the back of the solar panel is IP67 rated, and the waterproof rating is the same as IPHONE X and IPHONE 8 PLUS.
The junction box on the back of the solar panel has a Schottky diode built in to prevent reverse current.
About transparation:
FAQ
What is the difference between a 32 cells solar panel and a 36 cells solar panel?
The solar panel voltage of 32 cells is 16v, and the solar panel voltage of 36 cells is 18v.Compared to 18v solar panels, 16v solar panels do not perform as well as 18v solar panels in the morning and evening.
If your country has plenty of sunshine, then 16v solar panels can also achieve 18v performance.
Why did the title write 12V solar panels, and the product page wrote 18v solar panels?
Many customers will have a misunderstanding when choosing solar panels. They want to buy 12v solar panels to charge 12v batteries.
In fact, the voltage of the solar panel is affected by the light intensity.If the light is weak, the voltage of the solar panel will drop.
We set the solar panel voltage to 16v-18v to ensure that the solar panel still maintains enough voltage to charge the battery when the light is weak.
